Slide 12 of 16
Notes:

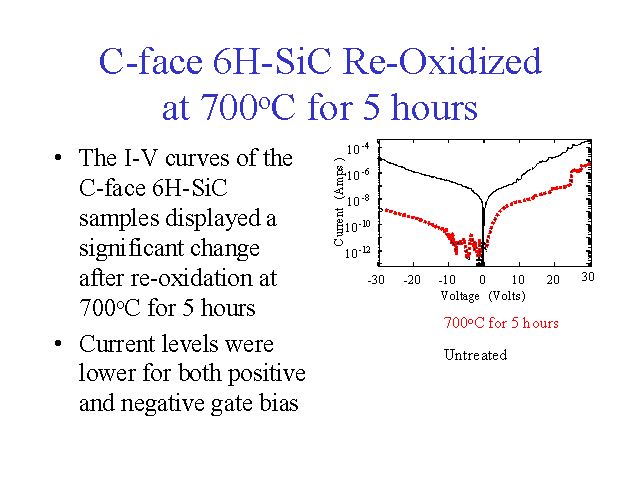

The I-V curves measured on the C-face 6H-SiC samples before and after a 700oC, 5 hour re-oxidation are displayed here. The solid black lines are the current values for the untreated sample and the dotted red lines are the values after re-oxidation. The re-oxidation produced a decrease in current without a significant increase in oxide thickness. The current measurements at a Vg of +30V were 2 orders of magnitude lower on the samples after treatment. The current measured at a Vg of -30V were 4 orders of magnitude lower on the treated samples.
